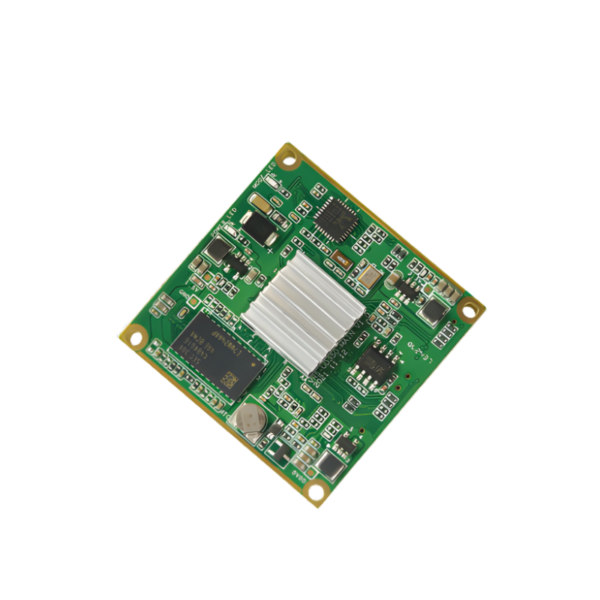

MIPI/LVDS to IP HD Interface Board

Product Specification

Product Model	VRS-UD350
Video Output Interface	Network
Video Output Format	1920×1080,1280×720
Communication Interface	Supports TTL UART for camera’s control; supports RS-485 for pan-tilt control
System Architecture	Embedded RTOS design, dual-core 32-bit DSP (HI3516DV300), pure hard compression
Video Processing	H.264/H.265 video encoding, supports three-stream,bit rate 500k~32Mbps adjustable
Power Supply	DC12V 1A
Operating Temperature	-5~60℃
Product Dimensions	Approx42.542.516mm, heat sink thickness 6mm , Approx 1.5g
Product Net Weight	Approx 23.2g

It is applicable to Sony 2MP FHD camera block with MIPI output: The FCB-EV9500M. By connecting to the camera with extremely thin coaxial cables, there is no need for complex configuration of the camera, and the network output of high-definitionvideo signals can be realized. Through hardware configuration, this interface board can also be adapted to other HD camera blocks with LVDS output such as
FCB-EV9520L. It converts the LVDS output into network signals to meet diverse application requirements. With its excellent compatibility, high-performance video processing capabilityand rich application scenarios, this network interface board provides users with a one-stop high-definition video networking solution. It is an ideal choice for fields such as surveillance, industrial automation,
intelligent transportation, and telemedicine.
