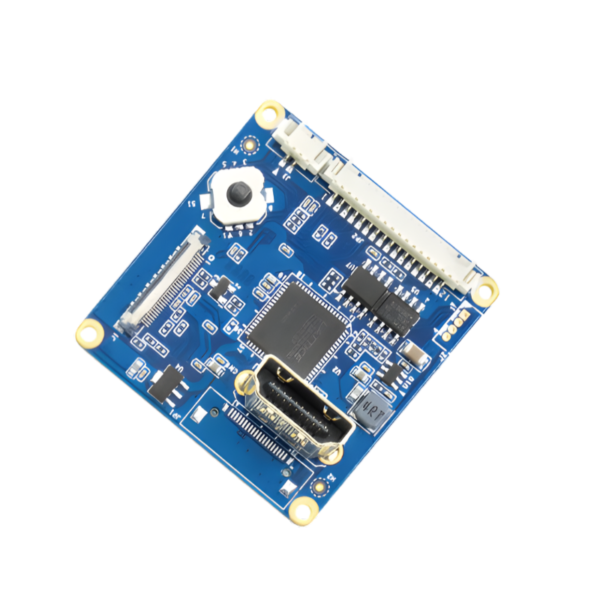

HD-HDMI Compatible High-Definition Interface Board

Product Specification

Product Model PCB-HD111, PCB-HD115
Video Output Interface HDMI A Type
Video Output Format 1920×1080, 1920x1080I,1280×720
Communication Interface Control RS-485 (standard), RS-232 (optional)
Communication Control Protocol Auto-recognition of PELCO-D, PELCO-P protocols
Power Supply DC12V 1A
Operating Temperature -5~60℃
Product Dimensions Approx 424215mm
Product Net Weight Approx 11.5g

This product is specially developed and designed for the full range of Sony FCB high-definition block cameras, dedicated to
providing excellent solutions for the high-definition imaging field. It adopts a single 4-layer military-grade PCB board with a
gold-plated surface, which enhances solderability and effectively prevents cold solder joints. High-quality electronic components are
selected, including high-performance HDMI-compatible interfaces, ARM processors, imported chips, and Hoson brand capacitors and
resistors. From material selection to craftsmanship, product performance and quality are comprehensively guaranteed, providing stable
and reliable control support for high-definition block cameras. This product is widely used in fields such as aerial photography,
video conferencing, medical equipment, and other professional instruments.
