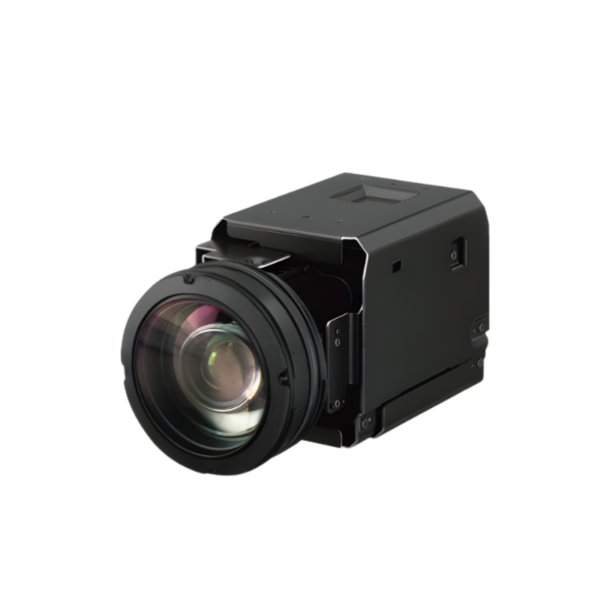

FCB-ES8230 4K Block Camera

Product Specification

Image sensor (Effective pixels)	1.0-type Exmor R CMOS Sensor (Approx 20.50MP)
Output pixels (H × V)	3840×2160 (QFHD), 1920×1080 (Full HD), 1280×720 (HD), 720×480/576 (SD)
Image formats	2160p/29.97, 2160p/25, 2160p/23.98,1080p/59.94, 1080p/50, 1080p/29.97, 1080p/25, 1080p/23.98,1080i/59.94, 1080i/50,720p/59.94, 720p/50, 480p/59.94, 576p/50
Super Resolution	4K 1.5 Times 1080P 2.0 Times
Focal Length	f= 9.3 mm – 111.6 mm, F2.8 – F4.5
Lens	12x Optical Zoom, 12x Digital Zoom
Video Output	HDMI
Main Features	Day and Night Switching, Image Stabilization, Defo
Dimensions	65.1 × 70.0 × 134.8 mm
Weight	Approx 520 g

FCB-ES8230 are Sony’s new-generation large-format 4K ultra-high-definition integrated camera modules. They are equipped with
advanced electronic fog penetration function and wide dynamic range performance with high dynamic range, capable of coping with complex external environments with ease. The modules adopt a 1-inch CMOS sensor with a large light-sensitive area and feature high-light suppression function. In low-light indoor environments, they can achieve lower noise control, present more vivid colors and more layered images, and can output 4K broadcast-level image quality. With excellent performance, FCB-ES8230/FCB-CS8230 have become the first choice for industries such as high-end conference cameras and medical equipment that require 4K ultra-high-definition cameras.
