This capture board is tailor-made for Sony FCB 4K full-series ultra-high-definition block cameras, as well as majority of 4K block
cameras utilizing Sony Visca commands. Boasting exceptional performance, this board integrates 4K ultra-high-definition resolution, a
USB3.0 high-speed data transmission interface, and dual-channel 4K output functionality via USB TYPE-C and HDMI-compatible. Its unique design not only meets the stringent requirements for high-definition image capture and transmission but also provides users with a flexible and convenient signal output solution through its HDMI-compatible loop-out function, significantly enhancing the device’s compatibility and practicality across various application scenarios.

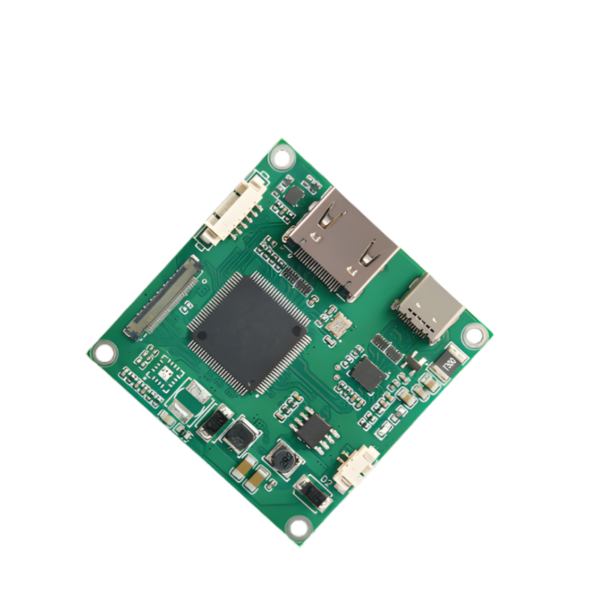

4K USB TYPE-C Ultra-HD Video Capture Board
Product Specification
| Product Model | PCB-UD111 |
|---|---|
| Video Output Interface | 4K USB TYPE-C, HDMI Loop Output Interface |
| Video Output Format | 3840×2160, 1920×1080, 1600X1200P, 1280×720 etc |
| Communication Interface Control | TTL-232 |
| Driver Program | Camera: driver-free. Serial port: driver required |
| Power Supply | DC12V 1A |
| Operating Temperature | -5~60℃ |
| Product Dimensions | Approx 48485mm (Loop-out interface without HDMI-compatible interface and heat sink dimensions) |
| Product Net Weight | Approx 13.3g |
