Designed specifically for the full range of Sony FCB 4K ultra-HD block cameras, it is also compatible with most 4K cameras featuring
the same interface. It stably outputs 4K HDMI ultra-HD video signals, ensuring that images captured by Sony 4K ultra-HD cameras are
perfectly displayed on 4K ultra-HD monitors. With its excellent performance, this interface board is widely used in fields such as drone aerial photography, video conferencing, medical equipment, and various professional instruments, providing reliable support for ultra-HD imaging applications.

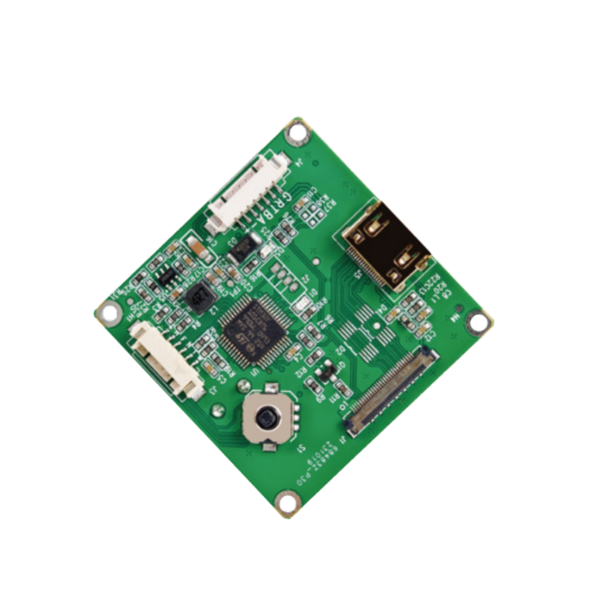

4K HDMI-compatible Ultra-HD Interface Board
Product Specification
| Product Model | PCB-UD001, PCB-UD002, PCB-UD003, PCB-UD004, PCB-UD005 |
|---|---|
| Output format | 3840×2160, 1920×1080, 1280×720 |
| Video Output Interface | HDMI C Type |
| Communication Interface Control | RS-485 (standard), RS-232 (optional), TTL-232 (optional) |
| Communication Control Protocol | Auto-recognition of PELCO-D, PELCO-P protocols |
| Menu | Supports On-Screen Display (OSD) adjustment |
| Power Supply | DC12V 1A |
| Operating Temperature | -5~65℃ |
| Product Dimensions | Approx 42429mm |
| Product Net Weight | Approx 9.8g |
