This product is compatible with the Sony FCB series 4K ultra-HD block cameras. It also works with non-Sony 4K camera modules that adhere to the Sony VISCA Command protocol. It is fully compatible with 4K UHD block cameras such as FCB-ER9500,
FCB-EW9500H, FCB-ER8530, FCB-ES8230, and FCB-ER8300. It adopts the HDMI-compatible 2.0 standard interface and supports the
output of 4K UHD (3840×2160) resolution digital video signals with a 60Hz refresh rate. It can realize real-time lossless transmission of the original image quality of Sony 4K ultra-HD block cameras, ensuring that cinema-level image effects are displayed on professional 4K monitors. It meets the application needs of professional fields such as broadcast-grade 4K HDR video surveillance and accurate medical image display.

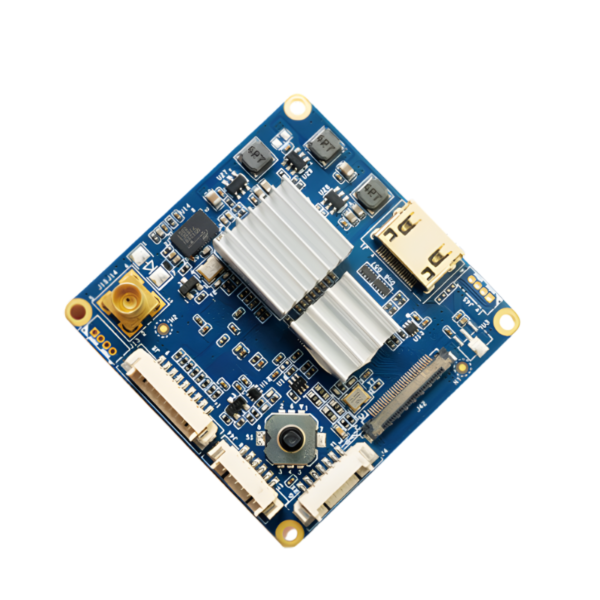

12G-SDI Ultra-HD Interface Board
Product Specification
| Product Model | VRS-UD601, VRS-UD602, VRS-UD603, VRS-UD604, VRS-UD605, VRS-UD606 |
|---|---|
| SDI output type | 3G-SDI, 6G-SDI, 12G-SDI |
| Video Output Format | 3840×2160, 1920×1080, 1280×720 |
| Video Output Interface | MCX radio frequency interface, HDMI-compatible interface |
| Communication Interface Control | RS-485 (standard), RS-232 (optional), TTL-232 (optional) |
| Communication Control Protocol | Auto-recognition of PELCO-D, PELCO-P protocols |
| Menu | Supports on-screen display (OSD) adjustment mode |
| Power Supply | DC12V 1A |
| Operating Temperature | -5~65℃ |
| Product Dimensions | Approx 48485mm (The height including the MCX interface is 7.5mm) |
| Product Net Weight | Approx 16.5g |
